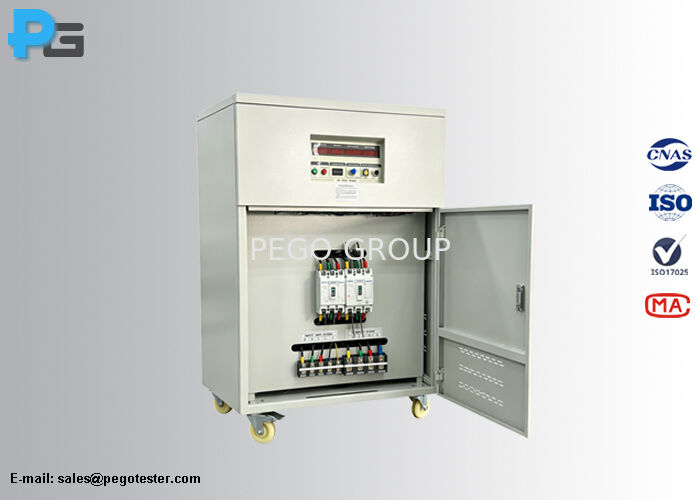

AC Power Supply 5KV to 400KV Available, 0-520V, 400Hz Adjsutable

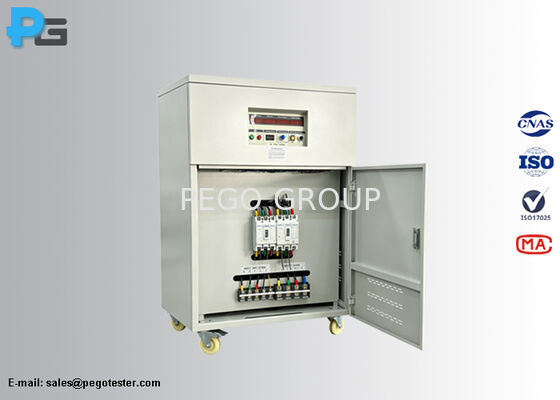

Large Image : AC Power Supply 5KV to 400KV Available, 0-520V, 400Hz Adjsutable

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS calibration Certificate
Model Number:	TY-8330

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD500~USD30000
Packaging Details:	woodencase
Delivery Time:	5-20 working days
Payment Terms:	T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Power Capacity:

30KVA

Output Voltage:

0-520V

Output Frequency:

40.0Hz-499.9Hz

Harmonic Distortion:

Sinewave≤2%

Highlight:

5KV AC power supply adjustable

400KV high voltage power supply

400Hz AC power supply 520V

AC Power Supply 5KV to 400KV Available

High-precision variable frequency power supply with 0-520V output and 400Hz adjustable frequency capability

Product Overview

The IGBT/PWM variable frequency power supply is a high-precision, high-efficiency power conversion device that utilizes IGBT (Insulated Gate Bipolar Transistor) technology and advanced PWM (Pulse Width Modulation) control. This system converts standard industrial frequency mains power into pure sine wave AC power with continuously adjustable voltage and frequency across a wide range.

Key Features

4-digit real-time display of voltage (V), frequency (Hz), current (A), power (W), and power factor (PF)
No radiation interference with minimal harmonic components, delivering pure and stable sine wave output
Compatible with resistive, capacitive, inductive, and non-linear loads
Strong overload capacity capable of withstanding 300% of rated current instantly
Comprehensive protection systems including overcurrent, over-temperature, short circuit, and instant power-off protection with warning devices

Technical Specifications

Parameter	Specification
Phase	3-phase
Capacity	30KVA (Customizable)
Mode	IGBT/PWM
Input Voltage	3φ 4 W + G: 380V±10%
Input Frequency	47Hz-63Hz or 400Hz ±5%
Output Voltage	Low: 0-260V High: 260-520V
Maximum Current	84A@0-260V 42A@260-520V
Load Stability	≤±1%
Frequency Range	40.0Hz-499.9Hz (presetable)
Frequency Stability	≤±0.01%
Harmonic Distortion	Sinewave ≤2%
Display Resolution	4-digit with 0.1Hz/0.1V/0.1A/0.1W resolution
Protection Devices	Overheat, short circuit, instantaneous power off protection with alarm
Operating Temperature	0-40℃
Operating Humidity	0-90%
Dimensions	850mm (D) × 750mm (W) × 1200mm (H)
Weight	330KG

Applications

This high-performance power supply is widely applied in electrical performance testing, variable-frequency motor driving, aerospace applications, industrial scientific research, and various other technical fields requiring precise power conversion.
