Temperature-Controlled Battery Short Circuit Test Chamber with 0-1500A Test Current, R.T~100℃ Test Temperature, and PLC+Touch Screen Control

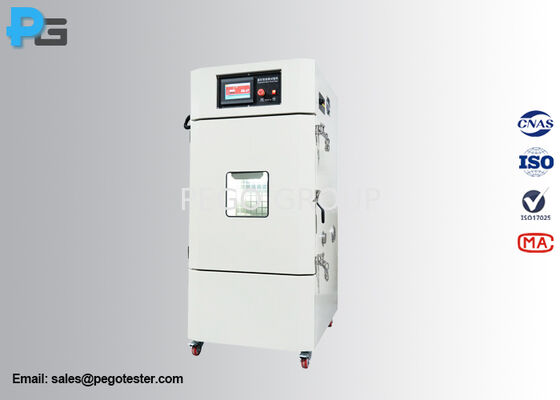

Large Image : Temperature-Controlled Battery Short Circuit Test Chamber with 0-1500A Test Current, R.T~100℃ Test Temperature, and PLC+Touch Screen Control

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS calibration Certificate
Model Number:	PG-BSCT

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD500~USD30000
Packaging Details:	woodencase
Delivery Time:	5-20 working days
Payment Terms:	T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Application:	For Testing Primary Lithium, Lithium-ion Batteries, Ni-MH, Ni-Cd And Lead-acid Batteries	Test Current:	0-1500A
Test Temperature:	R.T~100℃	Test Voltage:	0-100V
Internal Resistance:	≤3mΩ	Control Unit:	PLC+touch Screen

Temperature-Controlled Battery Short Circuit Test Chamber

1. Introduction

The battery short-circuit test chamber is designed for conducting external short-circuit tests on primary lithium batteries, other primary batteries, lithium-ion batteries (used in digital electronic products such as laptops and video cameras), as well as Ni-MH, Ni-Cd and lead-acid batteries (used in power tools, toys, electric bicycles and similar products).

It is designed to meet the test requirements of IEC 60079-11:2023 clause 9.14 and GB/T 3836.4-2024 clause 10.5, for testing the surface temperature of batteries or battery packs installed in intrinsically safe equipment.

2. Specification

Control unit	PLC+touch screen
Max. Permissible Test Sample Size	300mm300mm300mm
Working Dimensions of Explosion-Proof Chamber	500mm500mm500mm
Test voltage	0-100V
Voltage channel	1
Voltage display accuracy	±0.5%
Test current	0-1500A
Test temperature	R.T~100℃
Temperature uniformity	±2℃
Temperature fluctuation	±0.5℃
Display accuracy	±0.1℃
Temperature rising time	(5+1)℃/min
Action method	Double integral method
Impulse Voltage	AC 1 kV / 1.2–50 μs (Peak), 1 min
Internal resistance	≤3mΩ
Sampling interval	100ms
Test Time	Can be set arbitrarily
