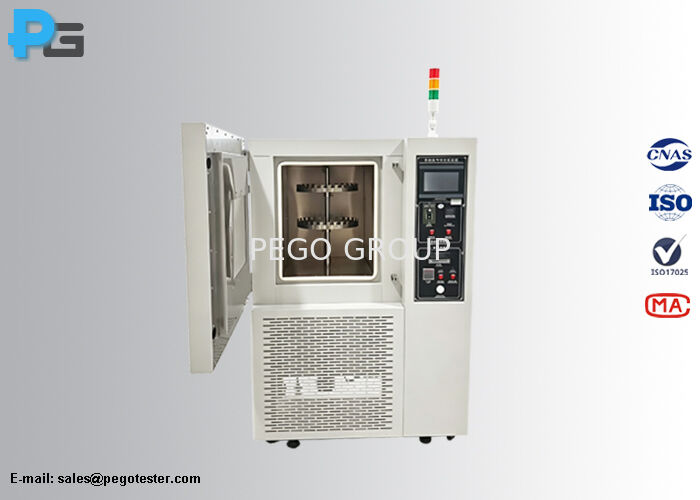

Air Oven for Aging and Heating Resistance Test to Rubber and Thermoplastic

Large Image : Air Oven for Aging and Heating Resistance Test to Rubber and Thermoplastic

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-OVA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1000~USD10000
Packaging Details:	woodencase
Delivery Time:	20-40 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Test Duration:	1min-99h	Application:	For Accelerated Aging And Heat Resistance Test To Rubber, Vulcanized, Thermoplastic
Air Velocity:	0.5～1.5m/s	Temperature Range:	R.T.+10℃~300℃
Working Power:	AC220V±10%, 50Hz	Air Exchange Method:	Forced Ventilation By Fan
Air Exchange Rate:	100–200 Times/hour	Nomative Standard:	GB/T3512, UL1581, ASTM-D2436, ASTM-D5423, ASTM-D5374, JIS K7212 And JIS B7757
Highlight:	Air oven for rubber aging test , Thermoplastic heating resistance test oven , Electrical safety test equipment with warranty

Air Oven for Aging and Heating Resistance Test to Rubber and Thermoplastic

The ASTM-D5423 Forced-air Aging Test Chamber performs accelerated high-temperature aging tests on specimens through forced hot air circulation. Equipped with a forced ventilation fan system, this unit precisely controls air exchange rates to simulate product aging degradation in long-term high-temperature environments.

Application Overview

This industrial test chamber evaluates heat resistance of electrical and electronic components, insulating materials, plastic products, rubber parts, and various other materials under high-temperature operating conditions. The equipment is essential for quality control and material testing in manufacturing and research applications.

Key Features

Forced hot air circulation system for uniform temperature distribution
Precise air exchange rate control from 100-200 times/hour
Two-tier stainless steel rotating rack for sample testing
Programmable timer function with automatic test termination
Advanced temperature control with 0.1℃ resolution

Technical Specifications

Parameter	Model 1	Model 2
Working Volume	W450×H550×D450mm (111L)	W500×H600×D500mm (150L)
Overall Dimension	W1020×H1100×D700mm	W1100×H1200×D780mm
Temperature Range	R.T.+10℃ to 300℃
Temperature Fluctuation	≤±0.5℃ (No-load)
Temperature Uniformity	≤±2℃ (No-load)
Temperature Rise Speed	1.0 to 3.0℃/min
Air Exchange Rate	100-200 times/hour
Air Velocity	0.5 to 1.5m/s
Sample Turntable	2-tier stainless steel rotating rack
Rotating Speed	1-10r/min (3600 rotation)
Working Power	AC220V, 50Hz

Compliance Standards

This equipment complies with global testing standards including GB/T3512-2001/2014, GB/T 11026.4-1999, GB/T 2951.41-2008, JB7444-1994, UL1581, ASTM-D2436, ASTM-D5423 (type II ovens), ASTM-D5374, CNS3556, CNS742, JIS K7212 and JIS B7757.

Industrial Application: Ideal for material testing laboratories, quality control departments, and research facilities requiring precise high-temperature aging simulations for rubber, thermoplastic, and electronic components.
