Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface

Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface
Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface

Large Image :  Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: CNAS Calibration Certificate
Model Number: PG-AV1.8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD500~USD1000
Packaging Details: carton
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Normative Standard: IEC60335-2-6, IEC60335-2-9 Application: For Verifyint The Ability Of Hob Surface To Withstand The Stresses
Weight: 1.8KG (loaded With Shot ≥1.3kg) Material: Aluminum

Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface
1. Introduction

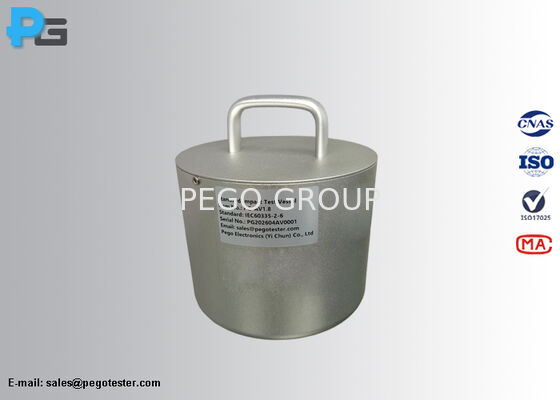

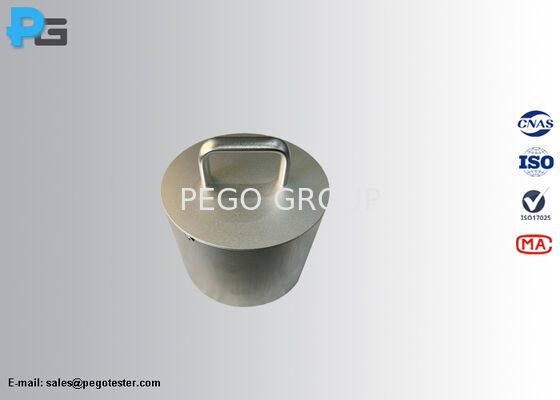

The standard impact test vessel is designed to meet the requirement of IEC60335-2-6 clause 21.102 and IEC60335-2-9 clause 20.101 to verify the ability of hob surface to withstand the stresses.The vessel is made of aluminum, and the flat base has a diameter of 120mm±10mm, its edges being rounded with a radius of at least 10mm. the vessel should be uniformly filled with a least 1.3kg of sand or shot so that the total mass is 1.8kg±0.01KG.

The loaded vessel is dropped flat 10 times from a height of 150mm onto the cooking zone of hob element, and the hob surface shall not crack and the appliance shall withstand the electric strength.

2. Specification
Diameter of the vessel 20mm±10mm
Height 113mm
Wall thickness 2.5mm
Edge radius ≥10mm
Weight 1.8KG (loaded with shot ≥1.3kg)
Material of the vessel aluminum
