IEC60309-1 Figure A.1-A.7 Pendulum Impact Test Apparatus

IEC60309-1 Figure A.1-A.7 Pendulum Impact Test Apparatus
IEC60309-1 Figure A.1-A.7 Pendulum Impact Test Apparatus

Large Image :  IEC60309-1 Figure A.1-A.7 Pendulum Impact Test Apparatus

Product Details:
Contact Now
Detailed Product Description
Highlight:

IEC60309-1 pendulum impact test apparatus

,

Figure A.1-A.7 impact test equipment

,

electrical safety pendulum test apparatus

Product Overview: IEC 60309-1 Pendulum Impact Test Apparatus

The pendulum impact test apparatus is manufactured in accordance with IEC 60309-1, Figures A.1 to A.7. It is used to verify the mechanical strength of industrial plugs and socket-outlets, appliance couplers, and similar electrical accessories by applying controlled pendulum impacts.

Technical Specifications
Pendulum release mode Manual
Number of working stations 1
Pendulum shaft Length 980 mm, designed according to Figure A.5; steel tube with Φ10 mm diameter and 1 mm wall thickness
Pendulum shaft end Designed according to Figure A.3, made of steel
Pendulum mass Dimensions Φ50 mm × 16 mm, designed according to Figure A.2; quantity 0.25 kg × 4; material: steel
Pendulum anvil Designed according to Figure A.4, made of steel
Pendulum pivot Designed according to Figure A.6, made of aluminum
Back and mounting plate Designed according to Figure A.7, made of 8 mm steel
Impact Level Parameters
Parameter 1J 2J 3J 4J 5J 6J
Mass used 0.5 kg 0.5 kg 1 kg 1 kg 1 kg 1 kg
Impact angle 25° 35° 36° 42° 47° 52°
Pendulum mass 1.44 kg 1.44 kg 1.93 kg 1.93 kg 1.93 kg 1.93 kg
Moment of inertia 1.17 kg·m² 1.17 kg·m² 1.61 kg·m² 1.61 kg·m² 1.61 kg·m² 1.61 kg·m²
Distance to gravity center 0.776 m 0.776 m 0.833 m 0.833 m 0.833 m 0.833 m
Product Image

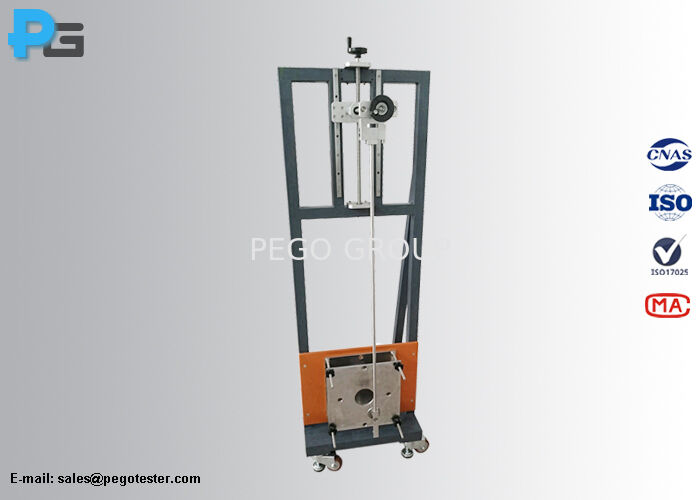

IEC 60309-1 pendulum impact test apparatus for industrial plugs and socket-outlets mechanical strength testing
IEC 60309-1 Figures A.1–A.7 pendulum impact test apparatus.
