IEC 60884-1 Figure 14 Device for Testing Non-Solid Pins to Verify the Mechanical Strength

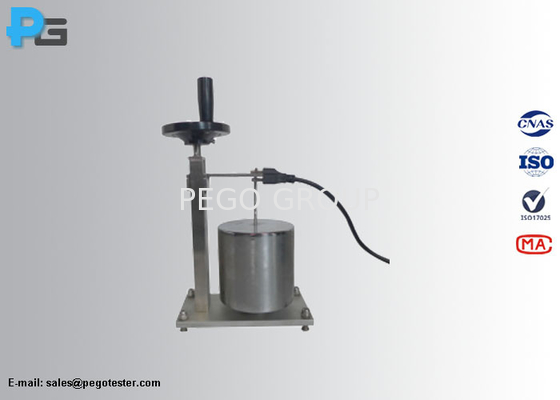

Large Image : IEC 60884-1 Figure 14 Device for Testing Non-Solid Pins to Verify the Mechanical Strength

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-NSP

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	carton
Delivery Time:	15 business days
Payment Terms:	T/T, PayPal

Contact Now

Detailed Product Description

Reference Standard:

IEC60884-1 Clause 14.2 And Figure 14

Configuration:

Support, 100N Weight, Φ4.8mm Steel Rod

Test Time:

1 Min

Application:

Verify The Mechanical Strength Of Non-solid Pins Of Plugs

Highlight:

Non-Solid Pins Tester Device

IEC 60884-1 Figure 14 Device

Mechanical Strength Tester Device

IEC 60884-1 Figure 14 Device for Testing Non-Solid Pins to Verify the Mechanical Strength

1. Introduction

The non-solid pin tester is designed according to IEC60884-1 figure 14. It is applied to check the mechanical strength of non-solid pins of plugs and portable socket-outlets.

A force of 100N is exerted on the pin which is supported as shown in IEC60884-1 figure 14, for 1min in a direction perpendicular to the axis of the pin, by mean of a steel rod have a diameter of 4.8mm, the axis of which is also perpendicular to the axis of the pin. During the application of the force, the reduction of the dimension of the pin at the point where the force is applied shall not exceed 0.15mm. After removal of the rod, the dimensions of the pin shall not have changed by more than 0.06mm in any direction.

2. Parameters

Steel rod	Φ4.8mm
Weight	100N
Usage	Manually rotate the hand wheel to make the pin bearing pressure, the test time is 1 min

IEC 60884-1 Figure 14 Device for Testing Non-Solid Pins to Verify the Mechanical Strength 0
