IK04 Spring Hammer Impact Test Equipment with 0.5J Impact Energy and Polyamide Hammer Head Compliant with IEC60320-1

Large Image : IK04 Spring Hammer Impact Test Equipment with 0.5J Impact Energy and Polyamide Hammer Head Compliant with IEC60320-1

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-lab Calibration Certificate
Model Number:	IK-SH04

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD220-USD1500pcs
Packaging Details:	Each packed in a silver box, then packed in a carton box
Delivery Time:	3 working days
Payment Terms:	T/T
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Standard:	IEC60320-1, IEC60068-2-75	IK Level:	04
Impact Energy:	0.5J	Weight:	1.5kg
Product Type:	Testing Equipment	Testing Mode:	Manual
Highlight:	IK04 Impact Test Equipment , IEC 60320-1 Impact Test Equipment , Appliance Inlets Impact Test Equipment

Impact Test Equipment IEC 60320-1 60068-2-75 IK04 Spring Hammer

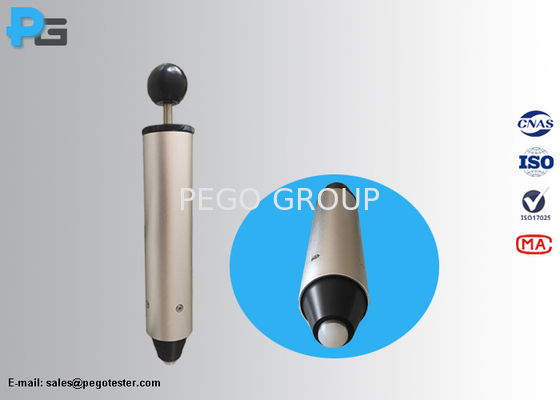

This 0.5J spring hammer is designed for performing impact tests on appliance inlets designed for surface-mounting and the insulating material shrouds of plug connectors and appliance outlets. The hammer is engineered according to IEC60068-2-75 test Ehb standards, featuring a hammer head with a hemispherical polyamide face with a radius of 10mm.

Application Standards

As per standard IEC60320-1 clause 23.4, the test sample is rigidly supported and 12 impacts are applied, with three impacts at each of four locations chosen to include the weakest points.

Technical Specifications

Parameter	Specification
Impact Energy	0.5±0.05J
Test IK Level	IK04
Error	±5%
Equivalent Mass	250g±5g
Radius of Hammer	R10mm
Weight	1250g
Trigger Force	<10N
Material of Hammer	Polyamide
Material of Shell	Stainless Steel
Reference Standard	IEC60068-2-75 test Ehb, IEC60320-1 clause 23.4

IK Protection Levels

IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10
0.14J	0.2J	0.35J	0.5J	0.7J	1J	2J	5J	10J	20J

Product Image

Frequently Asked Questions

Can you provide third-party laboratory calibration certificate?

Yes, the IK04 spring-operated hammer can be sent to third-party laboratories authorized by ISO17025 to obtain a calibration certificate. The buyer is responsible for the associated charges.

What materials are used in the spring hammer construction?

The cover of the spring hammer is made from SUS304 stainless steel, and the hammer head is manufactured from polyamide material.

What packaging is used for shipment?

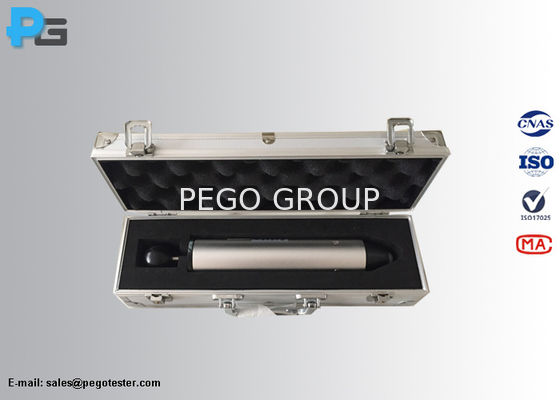

Each spring hammer is securely packaged in an aluminum-wrapped plastic box with protective foam interior, then placed within a carton for safe shipment.

How can we place an order for this item?

Please send an inquiry to us, and our sales representative will contact you within 24 hours to assist with your order.
