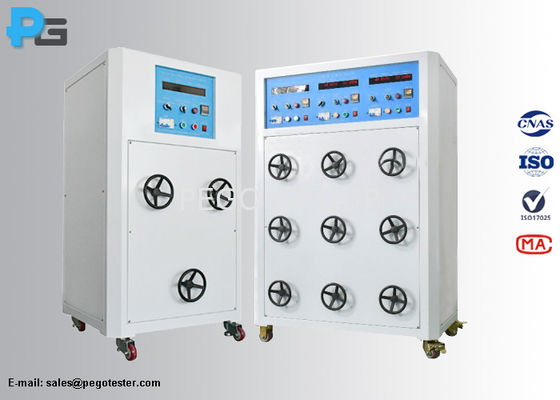

High-Performance Appliance Couplers Testing Equipment Power Load Cabinet for Endurance and Breaking Capacity Tests with 300V Test Voltage and 30A Test Current
1. Introduction:
Power Load cabinet is a support equipment to work with endurance testing machine, to energize the appliance couplers with test current, test voltage and power factor during the breaking capacity and normal operation tests. This power load cabinet can switch to resistive output, capacitive output (fluorescent lamp load) and inductive output, and also, the output voltage, current and power factor are customizable to meet the test requirements of the real cases.
The power load adopts strong wind convection cooling system, which solves the problem of heat generation during operation. And the equipment equip with 4 casters to make the cabinet moves easily.
2. Specification
| Model |
PG-PLD303 |
| Working station |
3 |
| Output voltage |
Range: 0-300V
Accuracy: ±0.5%
|
| Output current |
Range: 0-30A
Accuracy: ±0.5%
|
| Power factor |
Range: 0.3-0.98
Accuracy: ±0.5%
|
| Load type |
Resistive, inductive, capactive (switchable) |
| Capacitive load |
70μF, 140μF, 7.3μF selectable |
| Test times |
0-999999 (presetable) |
| Load capacity |
3*10KVA |
| Over limit alarm |
Output current upper limit: 30A, automatically cut off when over 32A |
| Dimension |
W1100mm*D800mm*H1800mm |
| Weight |
Approximate 400KG |
| Working power |
Input AC 380V/50Hz (3 phases 4 wires) |
| Working condition |
Atmospheric pressure: 80~106kpa
Ambient temperature: 5~40°C
Relative humidity: (20~80)%RH
No violent shaking, vibration, electromagnetic interference, dust, explosive and corrosive gas, good heat dissipation
|
3. Why Pego?
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours
4. FAQ
1). Can you provide third-lab calibration certificate for the non-solid pins tester?
Answer: Yes, it can be deliveried with the third-lab calibration certificate authorized by ISO17025, but the cost is additional.
2). Can the device work alone?
Answer: No, it needs to work with the endurance test equipment.
3). What package will be used for shipment?
Answer: The device will be packed in carton box.
4). What's the warranty of the device?
Answer: The warranty is 12 months upon receipt of the device and we will provide life-long maintenance. Within the warranty period, we will provide the free spare parts for your replacement, Outside the warranty period, we will only charge the cost of the accessories
