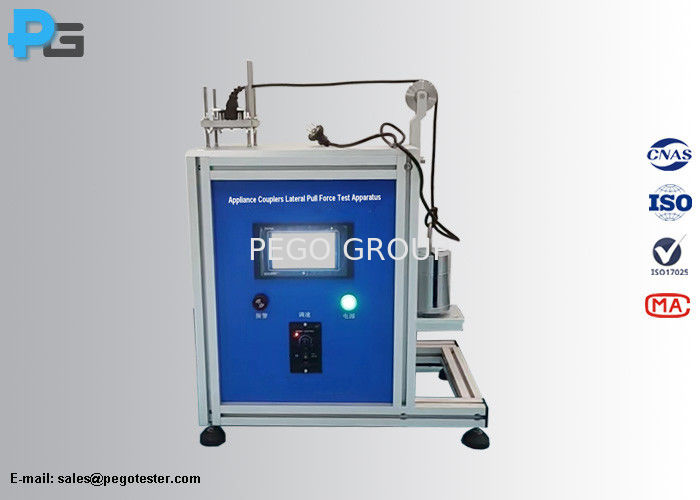

Lateral Pull Test Apparatus for Testing Appliance Couplers as per IEC60320-1

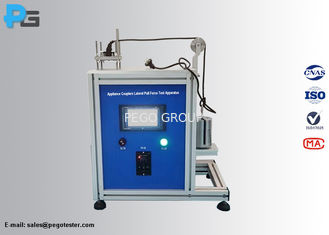

Large Image : Lateral Pull Test Apparatus for Testing Appliance Couplers as per IEC60320-1

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab cablibration certificate
Model Number:	PG-LTP

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	woodencase
Delivery Time:	20 working days
Payment Terms:	T/T,PayPal
Supply Ability:	50 sets/months

Contact Now

Detailed Product Description

Normative Reference:	IEC60320-1 Clause Clause 23.3 And Figure 8	Application:	For Verifying The Mechanical Strength Of Appliance Couplers
Working Power:	AC 220V/50Hz	Pull Force:	6N, 35N, 50N
Control Units:	PLC+5 Inch Touch Screen

Appliance Couplers Lateral Pull Test Apparatus

1. Introduction

The appliance couplers lateral pull test apparatus is designed to meet the test requirements of IEC60320-1 clause 23.3 and figure 8 to verify if the contact of connectors and appliance outlets have sufficient mechanical strength.

A lateral pull force in parallel with the engagement face, is applied to the cable of the connector / plug connector in four directions in step of 90°±5°, a pull force is applied 50 times in each direction to the cord for 1s ±0.5s. After the test, the connector / appliance outlet shall show no damage.

2. Specification

Controller	PLC+ 5 inch LCD touch screen
Drive mode	Gear motor
Pull force	6N1, 35N1, 50N*1
Working power	AC 220V/50Hz, 200W (max)
Dimension	L350mmW530mmH850mm

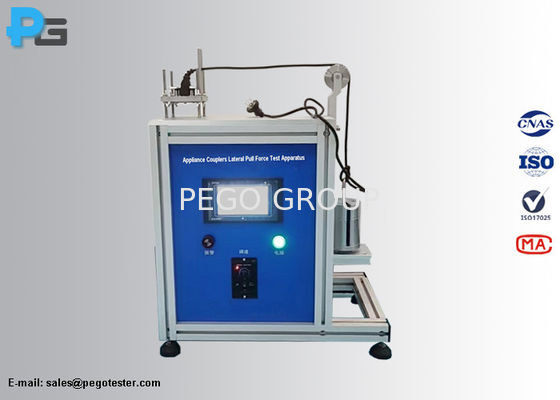

Lateral Pull Test Apparatus for Testing Appliance Couplers as per IEC60320-1 0

Lateral Pull Test Apparatus for Testing Appliance Couplers as per IEC60320-1 1
