IEC60695-11-4 50W Flammability Testing Horizontal and Vertical Flame Tester

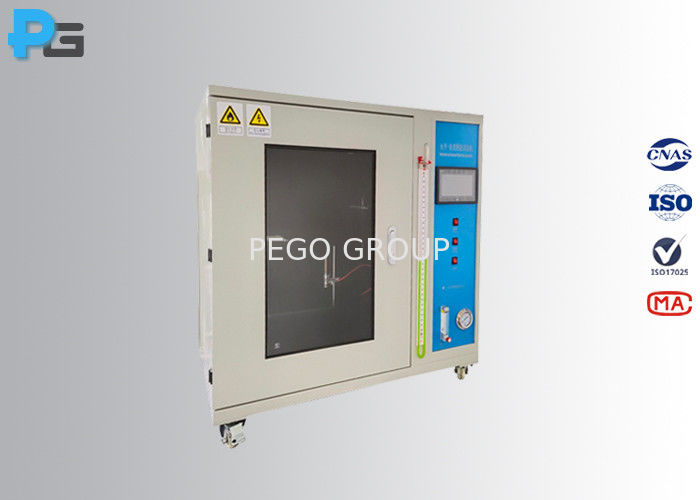

Large Image : IEC60695-11-4 50W Flammability Testing Horizontal and Vertical Flame Tester

Product Details:

Place of Origin:	China
Brand Name:	PEGO GROUP
Certification:	Third-lab calibration certificate
Model Number:	HVR-4H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD3100-USD4500/set
Packaging Details:	each packed in a wooden case
Delivery Time:	15 working days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Reference Standard:	IEC60695-11-4	Application:	Flammability Testing
Volume Of Chamber:	0.75CMB	Control Units:	PLC+Touch Screen
Working Power:	Single Phase 220V/50Hz	Warranty:	12 Months
Highlight:	Horizontal and Vertical Flame Tester , 50W Horizontal and Vertical Flame Tester

IEC60695-11-4 50W Flammability Testing Horizontal and Vertical Flame Tester

1. Introduction

The Horizontal and Vertical Flame Tester is designed according to the requirements of IEC60695-11-4, GB/T 5169.22, IEC60695-11-10, GB/T 5169.16, GB/T2408, Section 30.2 of IEC60335-1, Section 9.3.2 and Section 14.7 of IEC61010-1. It is widely applied in material testing of lamps, household appliances, IT/AV equipment, and electrical accessories. The equipment is used to generate a 50W nominal premixed test flame with a total flame height of approximately 20mm. The equipment is equipped with a 7-inch color touch screen, PLC, Bunsen burner, imported Dwyer back pressure gauge, methane flow meter, pressure gauge, air flow regulating valve, calibration copper block, imported K-type Omega armored thermocouple, and 4-button remote control.

2. Standard

- IEC60695-11-4 Fire hazard testing - Part 11-4: Test flames - 50 W flame - Apparatus and confirmational test method

- IEC60695-11-10 Fire hazard testing - Part 11-10: Test flames - 50 W horizontal and vertical flame test methods

- UL94 Tests for Flammability of Plastic Materials for Parts in Devices and Appliances

- IEC60335-1 Household and similar electrical appliance - Safety - Part 1: General requirements clause 30.2

- IEC61010-1clause 9.3.2 and 14.7

3. Parameters

Power supply	AC 220V/50Hz, 100Wmax
Control system	7-inch color touch Screen + PLC
Timer	Integrated in PLC Accuracy: ±0.1s
Flame calibration system	Complete the flame calibration with one key, the system automatically completes the flame calibration 3 times, and the system automatically judges each time. Any unqualified will prompt to re-adjust the flame, and stop the next flame calibration, if qualified, continue to the next flame calibration.
Flame height	20±2mm
Copper Block	Designed according to IEC60695-11-4 Figure 1, electrolytic copper, diameter: 5.5±0.01mm, height 8.8±0.02mm, weight before drilling 1.76±0.01g
Thermocouple	Φ0.5mm K type thermocouple
Burner	Designed according to figure A.1, Φ9.5mm ± 0.3mm, 100mm length bunsen burner, source: 50W
Number of flame	0~9999 times (presettable)
Volume of chamber	≥0.5 CBM, buit-in exhaust fan, exhaust hole: Φ100mm
Ignition way	Manual
Dip angle	0⁰, 20⁰, 45⁰ (manual adjustment)
Fuel gas	98% methane (prepare by user)
Drive Mode	Auto, with 4-button remote control
Dimension	1060mm650mm1200mm

4. Figure

Tag:

Contact Person: Ms. Penny Peng

Tel: +86-18979554054

Fax: 86--4008266163-29929
