Appliance Couplers Testing Equipment IEC60320-1 Non-solid Pin Tester with Diameter 4.8mm Rod
1. Introduction
The non-solid pin tester is designed according to IEC60320-1 figure 2. It is applied to check the mechanical strength of non-solid pins of appliance inlet / plug connector.
A force of 100N is exerted on the pin which is supported on the apparatus, for 1min in a direction perpendicular to the axis of the pin, by mean of a steel rod have a diameter of 4.8mm, the axis of which is also at right angles to the axis of the pin. After the test, there shall be no significant alteration in the shape of the pin.
2. Specification
| Steel rod |
Φ4.8mm |
| Weights |
100N |
|
Usage
|
Manually rotate the hand wheel to make the pin bearing pressure, the test time is 1 min |
| Reference standards |
IEC60320-1 figure 2, IEC60884-1 figure 14 |

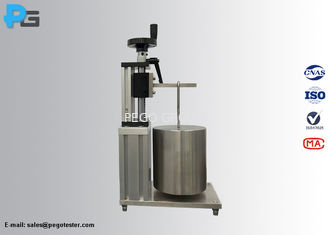

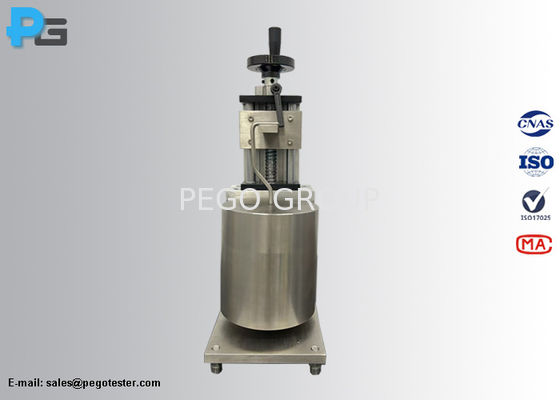

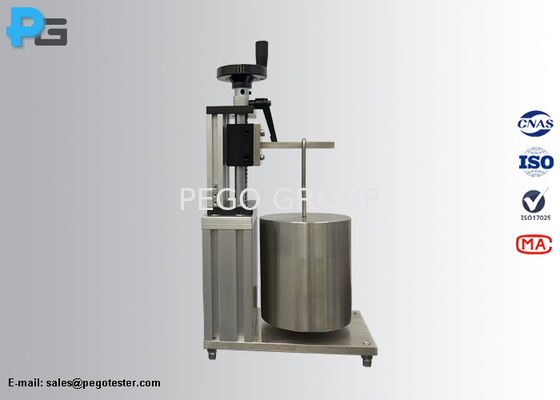

3. Figures
4. FAQ
1). Can you provide third-lab calibration certificate for the non-solid pins tester?
Answer: Yes, it can be deliveried with the third-lab calibration certificate authorized by ISO17025, but the cost is additional.
2). Can the device for testing non-solid pins work alone?
Answer: Yes, it can.
3). What is material of the machine?
Answer: The frame is made of aluminum, and the mass is made of SUS304 stainless steel.
4). What package will be used for shipment?
Answer: The device will be packed in carton box.
5). What's the warranty of the device?
Answer: The warranty is 12 months upon receipt of the device and we will provide life-long maintenance. Within the warranty period, we will provide the free spare parts for your replacement, Outside the warranty period, we will only charge the cost of the accessories
5. Why Pego?
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours
