IEC60320-1 Appliance Couplers Endurance Test Equipment for Testing Break Capacity and Normal Operation

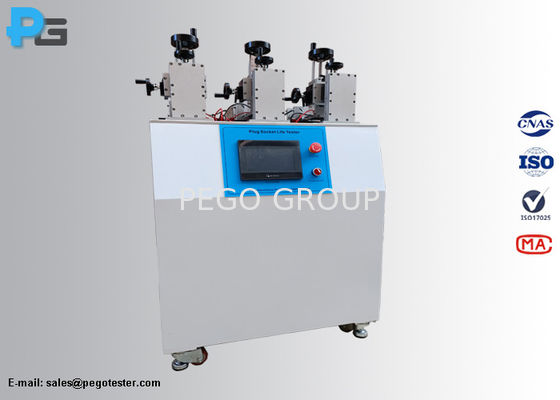

Large Image : IEC60320-1 Appliance Couplers Endurance Test Equipment for Testing Break Capacity and Normal Operation

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	ISO17025 Third-lab Calibration Certificate
Model Number:	PG-LTR

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD3500-USD10000/set
Packaging Details:	wooden case
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

Display:	Digital	Testing Time:	1-99s Settable
Frequency:	50Hz	Testing Method:	Auto
Power Supply:	AC 220V	Standard:	IEC60320-1
Station:	1,2, 3 Or Customized	Warranty:	12 Months
Highlight:	Appliance Couplers Endurance Test Equipment , Break Capacity Appliance Couplers Testing Equipment , IEC60320-1Appliance Couplers Testing Equipment

IEC60320-1 Appliance Couplers Endurance Test Equipment for Testing Break Capacity and Normal Operation

1. Introduction

The appliance couplers endurance test equipment designs to meet the test requirements of IEC60320-1:2015 clause 19 break capacity and clause 20 normal operation, for testing connector and appliance outlet.

The number of working station can be customized as per user’s requirement (that is depends on how many specimens that will be tested at one time). The endurance test equipment uses the servo motor to drive the slide rail assembly with clamps to do reciprocating rectilinear movement, thereby completing the insertion and extraction of connector/appliance outlet and appliance inlet/plug connector. Using universal mounting fixture (X, Y, Z three-axis adjustable) to hold the sample. And the test speed, test times and power on-off time can be preset by 7 inch touch screen,and controlled by PLC. The test apparatus adopts workbench design, and equip with 4 casters to make the machine moves easily.

Note: For testing standardized type of connector or appliance inlet, counterpart appliance inlet or plug connector shall have polished, hardened steel pins, and dimension as specified in the relevant standard sheet. Pego can customize the endurance test gauges. For testing non-standardized types, the counterpart as specified by the manufacturer shall be used.

2. Specification

Control unit	PLC+7 inch touch screen
Test stations	3
Test driver	Servo motors (3 working stations drives independently)
Moving structure	Ball screw rod equip with linear slide drive
Test speed	1-80mm/s (independently settable for each working station)
Test method	independently or simultaneously (one station is abnormally stop, the other station can works normally)
Test time (power on-off time)	0-99s (settable)
Number of strokes	1-999999 (Each station counts independently, and the machine automatically stops when the count reaches the set value)
Mounting fixture	1). X,Y, Z axis adjustable. 2). The fixture seat can be moved up and down, right and left, forward and backward to adapt to samples with different shapes.
Alarming function	1). independently detect whether there is current in the test circuit, and intelligently detects soldering deadness, non-conductivity, and long-term energization. Memorize the number of soldering deadness and non-conductive times and make a buzzer alarm prompt. 2). When a test failure occurs, the machine can detect and promptly cut off the load power. 3). Each work station has a short circuit protection device
Test items	Breaking capacity test for connector and appliance outlet Normal operation test for connector and appliance outlet
Dimension	L1200mmW200mmH1500mm
Working Power	AC220V/50Hz

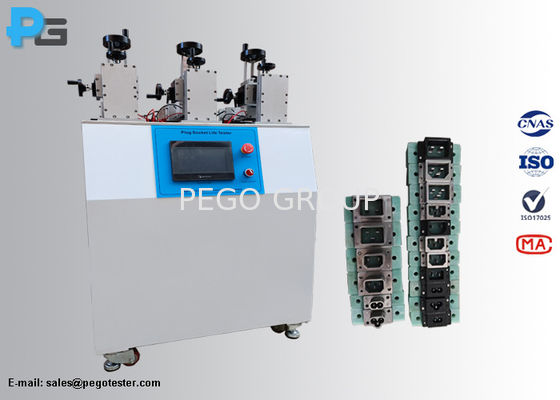

IEC60320-1 Appliance Couplers Endurance Test Equipment for Testing Break Capacity and Normal Operation 0

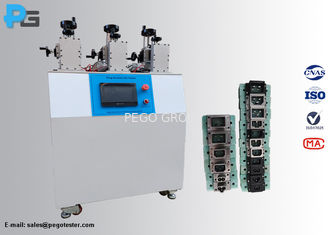

IEC60320-1 Appliance Couplers Endurance Test Equipment for Testing Break Capacity and Normal Operation 1

3. Why Pego?

1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.

2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.

3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.

4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.

6). Prompt Response to Customers: we promise to reply our customers within 24 hours
