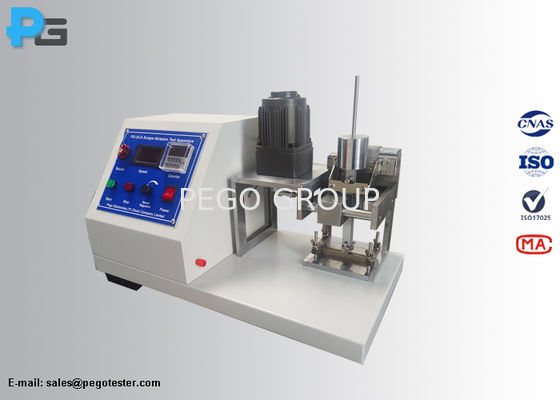

Scrape Abrasion Test Apparatus with 0.45mm Abrasion Needle Compliant to ISO6722-1 and ISO19642-2 at 55 Cycles/Min

Scrape Abrasion Test Apparatus with 0.45mm Abrasion Needle Compliant to ISO6722-1 and ISO19642-2 at 55 Cycles/Min
Scrape Abrasion Test Apparatus with 0.45mm Abrasion Needle Compliant to ISO6722-1 and ISO19642-2 at 55 Cycles/Min

Large Image :  Scrape Abrasion Test Apparatus with 0.45mm Abrasion Needle Compliant to ISO6722-1 and ISO19642-2 at 55 Cycles/Min

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: CNAS Calibration Certificate
Model Number: PG-SCA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000-USD5000
Packaging Details: woodencase
Delivery Time: 10-20 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Normative Standards: ISO6722-1, ISO19642 -2, DIN72551-5, QC/T-730, JASO D611-94 And VW60306 Diameter Of Abrasion Needle: 0.45mm*1, 0.25mm*1
Needle Material: Spring Wire Frenquency: 55 Cyles/min
Groove Depth: 0.4mm, 0.8mm Input: AC220V, 50Hz/60Hz
Highlight:

0.45mm abrasion needle Scrape Abrasion Test Apparatus

,

ISO6722-1 and ISO19642-2 Automotive Cable Abrasion Tester

,

55 cycles/min Cable Abrasion Resistance Tester

Scrape Abrasion Test Apparatus with a 0.45mm abrasion Needle for Testing Automotive Cables Compliant to ISO6722-1 and ISO19642-2
Introduction
The scrape abrasion test apparatus is a specialized device designed to evaluate the abrasion resistance of automotive cables. It complies with international standards including ISO6722-1 clause 5.12.4.2 and figure 7, ISO 19642-2 clause 5.3.2.5 and figure 4, DIN72551-5, QC/T-730, JASO D611-94, and VW60306.
The apparatus consists of:
  • A device to abrade the surface of the test sample's insulation
  • A counter to record the number of cycles until failure
The needle abrades through the insulation until contact with the conductor is made, at which point the apparatus automatically stops. Testing can be performed in two ways:
  • Scraping at a controlled speed until sample failure, recording the number of cycles
  • Applying a specific vertical force for a fixed number of cycles, then examining the sample for cracks or breakage
Technical Parameters
Parameter Specification
Diameter of needle (0.45±0.01) mm*1, (0.25±0.01)mm*1
Type of needle Spring wire material
Length of abrasion (15.5±1)mm
Frequency (50/60±5) cycles/min (adjustable)
Displacement of the needle ≤20mm
Drive mode Motor-driven
Mass 1N, 4N, 7N
Groove depth 0.4mm, 0.8mm
Number of test station 1
Working power AC220V/50Hz
Scrape Abrasion Test Apparatus with 0.45mm Abrasion Needle Compliant to ISO6722-1 and ISO19642-2 at 55 Cycles/Min 0
