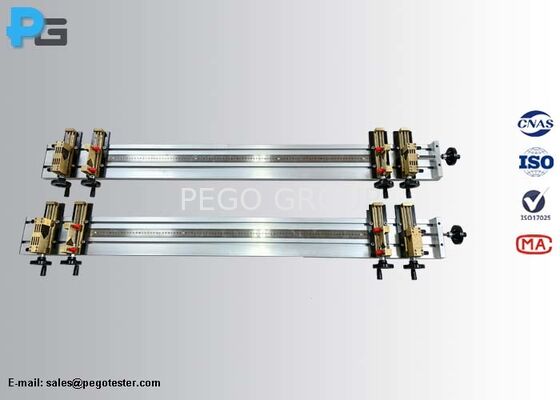

IEC 60468 Compliant 1 Meter Test Fixture for Conductor Resistance with Aluminum Alloy Base

IEC 60468 Compliant 1 Meter Test Fixture for Conductor Resistance with Aluminum Alloy Base
IEC 60468 Compliant 1 Meter Test Fixture for Conductor Resistance with Aluminum Alloy Base

Large Image :  IEC 60468 Compliant 1 Meter Test Fixture for Conductor Resistance with Aluminum Alloy Base

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: CNAS Calibration Certificate
Model Number: DQ-630
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000~USD2000
Packaging Details: woodencase
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Normative Standard: IEC 60468, IEC 60245-2, IEC 60245-1 Material: Aluminum Alloy Base, Copper Clamps
Test Specimen: 1m Conductor, With Diameter Less Than 42mm Application: For Testing The Resistance Of Condutor By Working With DC Resistance Meter
Highlight:

IEC 60468 Compliant Test Fixture

,

1 Meter Test Length Conductor Resistance Fixture

,

Aluminum Alloy Base Universal Conductor Resistance Fixture

1 Meter Test Fixture for Testing Resistance of Conductors Conform to IEC 60468
Universal Conductor Resistance Fixture
The universal conductor resistance fixture is a dedicated auxiliary device designed for use with DC double-arm bridges or DC resistance meters. This precision instrument is specifically engineered for testing conductor resistance in round copper and aluminum wires with a calibrated length of 1 meter.
Standards Compliance: Meets test requirements of IEC 60468, IEC 60245-2 clause 2.1, and IEC 60245-1 Clause 5.1.5
Advanced Design Features
  • Screw-type quick clamping and releasing structure for efficient operation
  • Independent mechanical structures for voltage and current terminals
  • Stable and reliable four-terminal contact with tested samples
  • Ensures accurate and repeatable resistance measurements
Technical Specifications
Parameter Specification
Measure Wire Length 1000mm
Conductor Cross-Section 1mm² - 630mm²
Maximum Wire Diameter ≤ φ42mm
Clamp Distance 100-1000mm
Material Construction Aluminum alloy base, copper clamp
Overall Dimensions 1450 × 140 × 130mm
Product Image
IEC 60468 Compliant 1 Meter Test Fixture for Conductor Resistance with Aluminum Alloy Base 0
