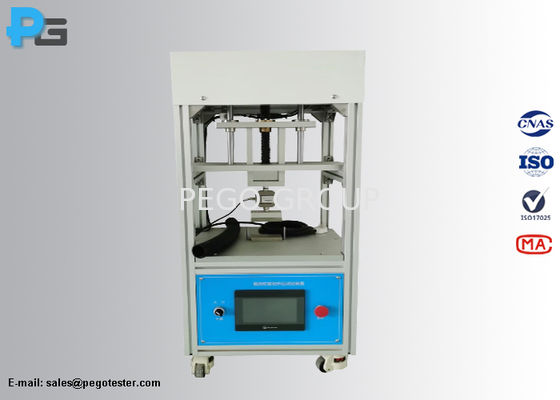

IEC60335-2-2 Compliant Crushing Test Apparatus with 1.5KN Max Crushing Pressure and 50mm/min Pressurization Speed for Current-Carrying Hose

IEC60335-2-2 Compliant Crushing Test Apparatus with 1.5KN Max Crushing Pressure and 50mm/min Pressurization Speed for Current-Carrying Hose
IEC60335-2-2 Compliant Crushing Test Apparatus with 1.5KN Max Crushing Pressure and 50mm/min Pressurization Speed for Current-Carrying Hose

Large Image :  IEC60335-2-2 Compliant Crushing Test Apparatus with 1.5KN Max Crushing Pressure and 50mm/min Pressurization Speed for Current-Carrying Hose

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: CNAS Calibration Certificate
Model Number: PG-CHC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1000~USD5000
Packaging Details: woodencase
Delivery Time: 10-20 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Normative Standard: IEC60335-2-2 Application: For Verifying The Current-carrying Hose Of Vacuum Cleaner Resistance To Crushing
Crushing Pressure: 1.5KN Max Pressurization Speed: 50mm/min
Control Units: PLC+touch Screen Input: AC 220V/50Hz (φ1)
Highlight:

IEC60335-2-2 Compliant Crushing Test Apparatus

,

1.5KN Max Crushing Pressure Current-Carrying Hose Tester

,

50mm/min Pressurization Speed Mechanical Strength Tester

Crushing Test Apparatus for Testing the Mechanical Strength of Current-Carrying Hose as Per IEC60335-2-2
The current-carrying hose test apparatus is designed to meet the test requirements of IEC60335-2-2 clause 21.101, for verifying the current-carrying hose resistance to crushing.
Test Method
The hose is placed between two parallel steel plates, with the axis of the hose positioned at right angles to the longer sides of the plates. The plates are placed at a distance of approximately 350mm from one end of the hose. The steel plates are pressed together at a rate of 50mm/min±5mm/min until the applied force is 1.5KN. The force is then released and the electric strength test is carried out.
Technical Specifications
Control units PLC+touch screen
Drive mode Servo gear motor
Crushing pressure 1.5KN max.
Pressurization speed 50mm/min±5mm/min
Steel plates Length 100mm, width 50mm with edges of longer sides rounded with radius of 1mm
Pressure accuracy 1% (force sensor)
Working power AC 220V/50Hz (φ1)
