IEC60335-2-2 Compliant Abrasion Test Apparatus with 30r/min Crank Speed and 0.1m/min Abrasive Cloth Belt Speed for Current-Carrying Hose Testing

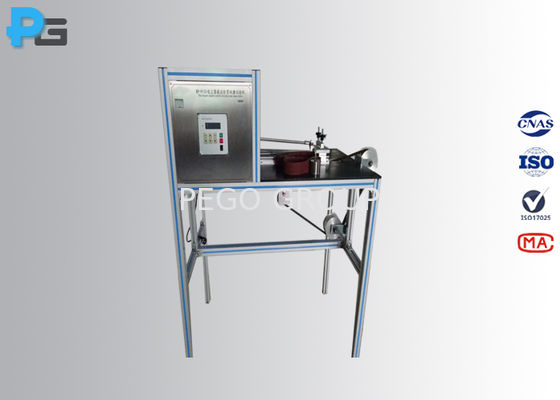

Large Image : IEC60335-2-2 Compliant Abrasion Test Apparatus with 30r/min Crank Speed and 0.1m/min Abrasive Cloth Belt Speed for Current-Carrying Hose Testing

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-CHA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1000~USD5000
Packaging Details:	woodencase
Delivery Time:	10-20 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standard:	IEC60335-2-2, IEC60335-2-24	Application:	For Testing The Current Carry Hoses Of Vacuum Cleaners Resistant To Abrasion
Crank Speed:	30r/min	Weight:	1kg
Moving Speed Of Abrasive Cloth Belt:	0.1m/min	Input:	AC 220V/50Hz
Highlight:	30r/min Crank Speed Abrasion Test Apparatus , 0.1m/min Abrasive Cloth Belt Speed Current-Carrying Hose Tester , 1kg Test Weight Mechanical Strength Tester

Abrasion Test Apparatus for Testing the Mechanical Strength of Current-Carrying Hose as Per IEC60335-2-2

Introduction

This test apparatus is designed according to IEC60335-2-2 clause 21.102 figure 101 and IEC60335-2-24 clause 21.102 and figure 101. It is used to test the abrasion resistance of current-carrying hoses in vacuum cleaners. The apparatus operates by attaching one end of the hose to the connecting rod of a crank mechanism that rotates at 30r/min, causing the hose end to move horizontally over a 300mm distance. The hose is supported by a rotating smooth roller with an abrasive cloth belt moving at 0.1m/min. A 1kg mass is suspended from the other end of the hose, which is guided to rotate. The test continues for 100 crank revolutions.

Technical Parameters

Parameter	Value
Control units	Button control + meter
Drive mode	AC geared motor
Crank speed	30r/min
Hose moving distance	300mm
Moving speed of abrasive cloth belt	0.1m/min
Abrasive cloth belt	Size P100 as per ISO/DIS644
Weight	1kg
Distance between weight and roller center	600mm
Counter	Setting value: 0-999 (settable) Real value: displays actual test count
Dimension	500mm × 800mm × 1600mm (W × L × H)
Working power	220V/50Hz
