IEC60227 Compliant Cable Bending Test Apparatus with 0.5KG Test Load and 60r/min Oscillating Speed

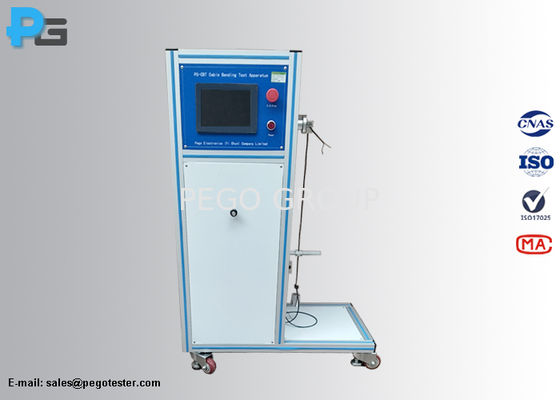

Large Image : IEC60227 Compliant Cable Bending Test Apparatus with 0.5KG Test Load and 60r/min Oscillating Speed

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-CBT

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1000~USD5000
Packaging Details:	woodencase
Delivery Time:	10-20 working days
Payment Terms:	T/T
Supply Ability:	50 set/months

Contact Now

Detailed Product Description

Normative Standards:	IEC60227-2, IEC60227-1	Application:	For Checking The Mechanical Strength Of Completed Cables
Test Current:	0.1A	Test Load:	0.5KG
Oscillating Speed:	60r/min	Swing Angle:	±90 Degrees On Both Sides From Vertical
Control Unit:	PLC+touch Screen	Input:	220V, 50Hz/60Hz
Highlight:	0.5KG Test Load Cable Bending Test Apparatus , 60r/min Oscillating Speed Cable Flexing Tester , ±90° Swing Angle IEC60227 Cable Tester

Cable Bending Test Apparatus for Checking Mechanical Strength of Complete Cables Compliant with IEC60227

Introduction

The cable bending test apparatus is designed to meet the test requirements of IEC60227-2:2003 clause 3.2 and IEC60227-1:1998 clause 5.6.3.2 for checking the mechanical strength of completed cables. A sample of cord of appropriate length is fixed in the apparatus, and loaded with a weight having a mass of 0.5KG. A current of about 0.1A shall pass through the conductors. The sample shall be bent backward and forwards in a direction perpendicular to the plane of the axis of the conductors, the two extreme positions making an angle of 90° on both sides of the vertical. A flexing is a movement through 180°. The rate of flexing is 60 per minute. Neither interruption of the current nor short circuit between the conductors shall occur.

Specification

Working power	220V/50Hz, 300W max
Control system	7 inch LCD touch screen+PLC
Load weights	0.5KG
Working station	1
Oscillating speed	60r/min
Oscillating drive	Step motor
Test times	0-99999 (preset-able)
Oscillating angle	Free setting
Angle indicator	0-360°, made of stainless steel
Swing angle	±90° on both sides from vertical
Output current	0.1A
Output power (max)	50W
