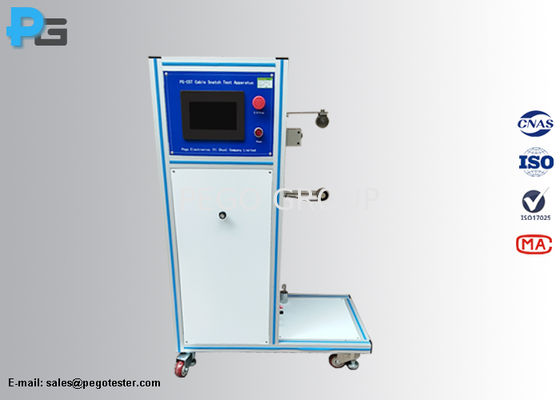

IEC60227 Compliant Cable Snatch Test Apparatus with 0.5KG Test Load and 0.5m Falling Height for Mechanical Strength Testing

IEC60227 Compliant Cable Snatch Test Apparatus with 0.5KG Test Load and 0.5m Falling Height for Mechanical Strength Testing
IEC60227 Compliant Cable Snatch Test Apparatus with 0.5KG Test Load and 0.5m Falling Height for Mechanical Strength Testing

Large Image :  IEC60227 Compliant Cable Snatch Test Apparatus with 0.5KG Test Load and 0.5m Falling Height for Mechanical Strength Testing

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: CNAS Calibration Certificate
Model Number: PG-CBT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000~USD5000
Packaging Details: woodencase
Delivery Time: 10-20 working days
Payment Terms: T/T
Supply Ability: 50 set/months
Contact Now
Detailed Product Description
Normative Standards: IEC60227-2, IEC60227-1 Application: For Checking The Mechanical Strength Of Completed Cables
Test Current: 0.1A Test Load: 0.5KG
Drop Mothod: Electromagnet Release Falling Height: 0.5m
Control Unit: PLC+touch Screen Input: 220V, 50Hz/60Hz
Highlight:

0.5KG Test Load Cable Bending Test Apparatus

,

60r/min Oscillating Speed Cable Flexing Tester

,

±90° Swing Angle IEC60227 Cable Tester

Cable Snatch Test Apparatus for Checking Mechanical Strength of Complete Cables Compliant with IEC60227
Introduction
The cable snatch test apparatus is designed to meet the test requirements of IEC60227-2:2003 clause 3.3 and IEC60227-1:1998 clause 5.6.3.3 for checking the mechanical strength of completed cables.
A sample of cord of appropriate length shall be attached by one end to a rigid support and a weight having a mass of 0.5KG shall be secured to the sample 0.5m below the point of attachment. A current of about 0.1A shall be passed through the conductors. The weight shall be raised to the point of attachment and then dropped five times. During the test, interruption of the current shall not occur.
Specification
Working power 220V/60Hz, 300W max
Control system 7 inch LCD touch screen+PLC
Load weights 0.5KG
Lifting height 0.5m
Drop method Electromagnet release
Oscillating drive Step motor
Output current 0.1A
Output power (max) 50W
Judgment function During the test, an alarm will be triggered if there is an interruption of current
