High Temperature Indentation Device with 3 Test Stations and 0.7mm Blade Thickness Compliant with IEC60811-508

High Temperature Indentation Device with 3 Test Stations and 0.7mm Blade Thickness Compliant with IEC60811-508
High Temperature Indentation Device with 3 Test Stations and 0.7mm Blade Thickness Compliant with IEC60811-508

Large Image :  High Temperature Indentation Device with 3 Test Stations and 0.7mm Blade Thickness Compliant with IEC60811-508

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: CNAS Calibration Certificate
Model Number: PG-IDD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000-USD5000
Packaging Details: woodencase
Delivery Time: 5-15 working days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Highlight:

Compliant with IEC60811-508 Indentation Device

,

3 Test Stations Cable Sheath Tester

,

0.7mm Blade Thickness IEC60811-508 Tester

Indentation Device at High Temperature for Testing Cable Sheaths Compliant with IEC60811-508
Introduction

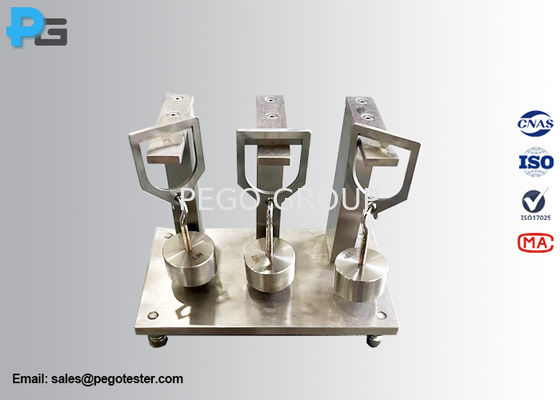

The indentation device is designed according to IEC60811-508:2012 figure 1 and ISO19742-2 figure 10. The device consists of a blade, supporting mandrel, and loads. It is used to test the indentation produced by the insulation sheath of plugs or cables under high temperature and pressure, and should be used in conjunction with an oven.
Specification
Number of test stations 3
Blade thickness 0.7±0.01mm
Blade width 30mm±0.1mm
Load 1g*3, 2g*3, 5g*3, 10g*3, 20g*3, 50g*3, 100g*3, 200g*3, 500g*3, 1000g*3 (Made of stainless steel)
Application ≥0.4mm and ≤55mm insulation sheath
Supporting mandrel Flat plate, 90° V slot plate, 120° V slot plate
Weight tray Diameter φ100mm
Material of device SUS304
Dimension 400mm*220mm*330mm
Weight Approximately 20kg
High Temperature Indentation Device with 3 Test Stations and 0.7mm Blade Thickness Compliant with IEC60811-508 0 High Temperature Indentation Device with 3 Test Stations and 0.7mm Blade Thickness Compliant with IEC60811-508 1
