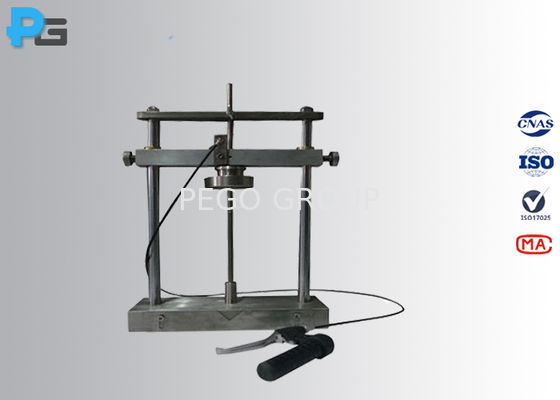

Cold Impact Test Apparatus for Cable Sheaths Compliant with IEC60811-1-4 and ISO6722-1 with 100mm Impact Height

Large Image : Cold Impact Test Apparatus for Cable Sheaths Compliant with IEC60811-1-4 and ISO6722-1 with 100mm Impact Height

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-LTI-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1000~USD5000
Packaging Details:	woodencase
Delivery Time:	10-20 working days
Payment Terms:	T/T
Supply Ability:	50 sets/months

Contact Now

Detailed Product Description

Normative Standard:	IEC60811-1-4, ISO6722-1, ISO 19642-2	Impact Height:	100mm
Falling Weights:	100g, 200g, 300g, 400g, 500g, 600g, 750g, 1000g, 1250g, 1500g	Test Temperature:	(-15±2)℃
Steel Base:	10±1KG In Mass, 40mm In Thickness	Release Mode:	Manual Release
Highlight:	Compliant with IEC60811-1-4 Cold Impact Test Apparatus , Compliant with ISO6722-1 Cable Impact Tester , 100mm Impact Height PVC Insulation Tester

Cold Impact Test Apparatus for Cable Sheaths and PVC Insulations

Compliant with IEC60811-1-4 and ISO6722-1 Standards

Introduction

The cold impact test apparatus is designed according to IEC60811-1-4 clause 8.5 & figure 2, ISO6722-1 clause 5.11 (cold impact), and ISO 19642-2 clause 5.5.8 & figure 11. This test verifies that cables can withstand impact at low temperatures without cracking while maintaining insulation properties.

The apparatus performs impact tests from a height of 100mm with falling weights on power cables, automotive cables, flexible cables, and cords with PVC insulation and sheaths at low temperatures. After testing, no cracks should be visible in the insulating sheaths with normal or corrected vision without additional magnification.

The apparatus works with a freezing chamber and must be placed on a 40mm thick sponge rubber pad during operation.

Specifications

Model	PG-LTI-2
Working Station	1
Falling weight	100g, 200g, 300g, 400g, 500g, 600g, 750g, 1000g, 1250g, 1500g
Falling impact height	100mm
Steel block	Φ20, bottom arc: R300, 100g
Cool time	>16h
Test temperature	as per the type of PVC compound
Steel support	Thickness: 40mm, Weight: 10±1KG
Release mode	Manual, mechanical release
Standard compliance	IEC60811-1-4 clause 8.5 and figure 1 ISO 6722-1 clause 5.11 and figure 5

Fixed Cable Samples - Falling Weight Specifications

OD mm	Falling weight (g)
- to 4.0	100
4.0 to 6.0	200
6.0 to 9.0	300
9.0 to 12.5	400
12.5 to 20.0	500
20.0 to 30.0	750
30.0 to 50.0	1000
50.0 to 75.0	1250
75.0 and above	1500

Soft Cable Samples - Falling Weight Specifications

OD mm	Falling weight (g)
Flat cord	100
- to 6.0	100
6.0 to 10.0	200
10.0 to 15.0	300
15.0 to 25.0	400
25.0 to 35.0	500
35.0 and above	600
