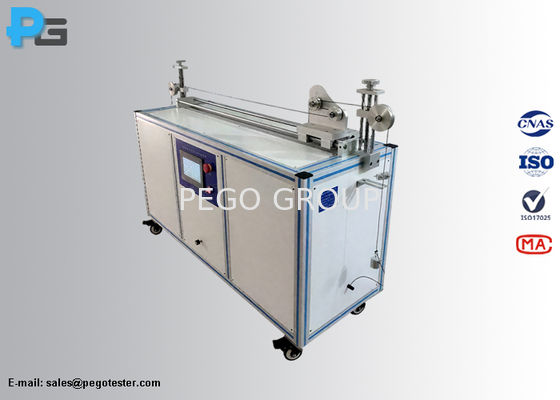

Cable Flexing Test Apparatus Compliant with IEC60245-2 and IEC60227-1 for Mechanical Strength Testing at 0.33m/s

Large Image : Cable Flexing Test Apparatus Compliant with IEC60245-2 and IEC60227-1 for Mechanical Strength Testing at 0.33m/s

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-HWF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1000~USD5000
Packaging Details:	woodencase
Delivery Time:	10-20 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standards:	IEC60245-2, IEC60227-1	Application:	For Testing The Mechanical Strength Of Completed Flexiable Cables
Configuration:	Carrier, Driving System, Pulleys	Test Distance:	1m
Test Speed:	0.33m/s	Mass:	0.5kg, 1.0kg, 2.0kg, 3.0kg, 4.0kg
Diameter Of Pulleys:	φ60mm, φ80mm, φ120mm, φ160mm, φ200mm	Input:	220V, 50Hz/60Hz
Highlight:	Compliant with IEC60245-2 Cable Flexing Test Apparatus , Compliant with IEC60227-1 Cable Tester , 0.33m/s Test Speed Flexing Test Apparatus

Cable Flexing Test Apparatus for Testing the Mechanical Strength of Completed Flexible Cables Compliant with IEC60245-2

Introduction of Flexing Test Apparatus

The flexing test apparatus is designed to meet the test requirements of IEC60245-2 clause 3.1 & figure 3.1 and IEC60227-1 clause 3.1 & figure 1, for verifying the mechanical strength of completed flexible cables. The flexing test is applied to test PVC insulated cables and rubber insulated cables with 2 or more cores, rated at voltage up to and including 450V/750V.

The flexing test apparatus mainly consists of a carrier, a driving system for the carrier and four pulleys for each sample of cable to be tested. The carrier supports two pulleys A and B (with same diameter). The two fixed pulleys, at either end of the apparatus, may be of a different diameter from pulleys A and B, but all four pulleys shall be so arranged that the sample is horizontal between them.

Specification of Flexing Test Apparatus

Control units	Meter+button
Test distance	1m
Test speed	0.33m/s
Test current	0-35A (adjustable)
Diameter and quantity of pulleys	φ60mm2, φ80mm2, φ120mm2, φ160mm2, φ200mm*2
Masses	0.5kg 2, 1.0kg2, 2.0kg2, 3.0kg2, 4.0kg*2
Length of tested cable	5m
Test specimens	2-18 cores, 0.5mm²-2.5mm²
Counter	0-999999 (digital display)
Working power	220V, 50Hz/60Hz
