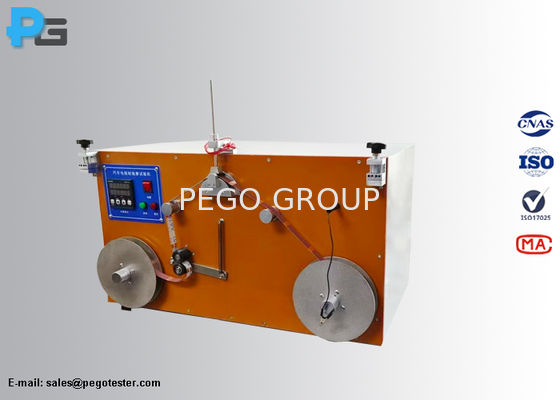

Sandpaper Abrasion Test Apparatus for Automotive Cable Testing with 1500mm/min Speed and 29±2° Angle Compliant with ISO 6722-1

Large Image : Sandpaper Abrasion Test Apparatus for Automotive Cable Testing with 1500mm/min Speed and 29±2° Angle Compliant with ISO 6722-1

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-SDA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1000-USD5000
Packaging Details:	woodencase
Delivery Time:	10-20 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standards:	ISO6722-1, ISO 19642-2, JASO D608, JASO D611, SAE J1127, SAE J1128 And JIS C3406	Type Of Abrasion Tape:	150J Garnet Sandpaper Tape, 180J Aluminum Oxide Sandpaper Tape
Test Speed:	1500mm/min	Angle Between Sandpaper Tape And Sample:	29±2°
Force Applied:	0.63N	Input:	AC 220V, 50Hz/60Hz
Highlight:	1500mm/min Sandpaper Abrasion Test Apparatus , 29±2° Automotive Cable Abrasion Tester , 0.63N ISO 6722-1 Test Equipment

Sandpaper Abrasion Test Apparatus for Testing Automotive Cable

Compliant with ISO 6722-1 and ISO 19642-2 standards

Introduction

The sandpaper abrasion test apparatus is designed according to ISO 6722-1 clause 5.12.4.1 figure 6 and ISO 19642-2 clause 5.3.2.4 figure 3, as well as GB/T25085, QC/T730, JASO D608, JASO D611, SAE J1127, SAE J1128 and JIS C3406 standards. This test verifies the resistance of cable insulation to sandpaper abrasion.

The test measures resistance to abrasion using sandpaper tape with 5mm to 10mm conductive strips spaced every 75mm maximum. A force of (0.63±0.05)N is applied to the test sample through the bracket, support rod and pivoting arm combination. The sample is mounted taut without stretching, and the sandpaper tape is drawn under it at (1500±75)mm/min while recording the length needed to expose the conductor. The test is repeated four times with sample rotation between tests to determine mean abrasion resistance.

Specifications

Feature	Specification
Test station	1 station (tests one sample at a time)
Test sample size	Diameter ≤15mm, length 1m
Clamp	Left and right clamps with 700mm distance between
Sandpaper tape	150J garnet sandpaper tape (5m length, 20mm width per ISO6722-1) or 180J Al2O3 sandpaper tape (5m length, 10mm width with 75mm spacing per ISO19642-2)
Speed	Selectable between 100mm/min and 1500mm/min
Abrasion travel	Adjustable from 0-4000mm
Angle	29±2° between sandpaper tape and sample
Weight	Support rod + bracket = 64.26g, with optional 50g, 100g, 200g, 500g, 1500g weights (customizable)
Power supply	AC 220V, 0.5KW
