IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus

Large Image : IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-lab Calibration Certificate
Model Number:	PGW-WART

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden Case
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Standard:	IEC60851-3	Scraper Diameter:	(0.23±0.01)mm
Scrape Speed Of Scraping Device:	(400±40)mm/min	Test Voltage:	DC (6.5±0.5)V
Short-circuit Current:	(20±0.5)mA	Power Supply:	AC 220V±10%, 50Hz
Highlight:	Round Wire Abrasion Resistance Test Apparatus , Enamelled Wire Abrasion Resistance Test Apparatus , IEC60851-3 Abrasion Resistance Test Apparatus

IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus

1. Introduction

The enamelled round wire abrasion resistance test apparatus is designed according to IEC60851-3 clause 7 figure 1 and figure 2 and GB/T4074.3 clause 5.2. It’s used to test the abrasion resistance of the enamel film on round enameled wires with a nominal conductor diameter over 0.250 mm.

Principle:

A straight piece of wire is subjected to a unidirectional scrape test, by a needle to which a progressively increasing load is applied and which scrapes along the wire surface. The load that causes an electrical contact of the needle with the conductor is called the load-to-failure.

2. Specification

Moveable distance of scraping device	>100mm
Scrape speed of scraping device	(400±40)mm/min
Scraper diameter	(0.23±0.01)mm
Sample rotation way	Automatically
Test voltage	DC (6.5±0.5)V
Short-circuit current	(20±0.5)mA
Scratch resistance error	<±5%
Weight	5N3, 2N2, 1N1, 0.5N1, 0.2N2, 0.1N1
Power supply	AC 220V±10%, 50Hz
Power consumption	<150W
Operating environment	Temperature: 0-40℃, relative humidity: ≤85%
Dimension and weight	L600W350375mm/35KG

3. Picture:

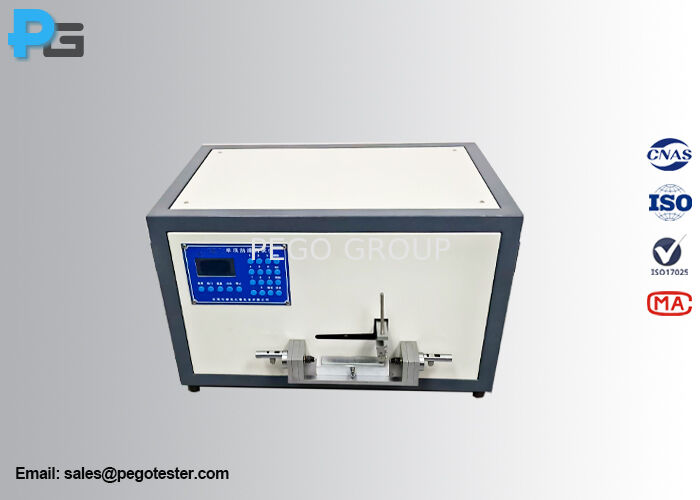

IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus 0
