IEC60851-3 Round Wire Mandrel Winding Test Apparatus

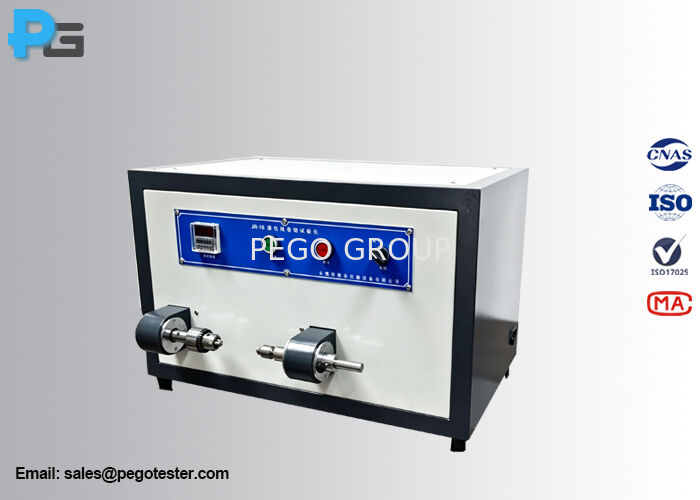

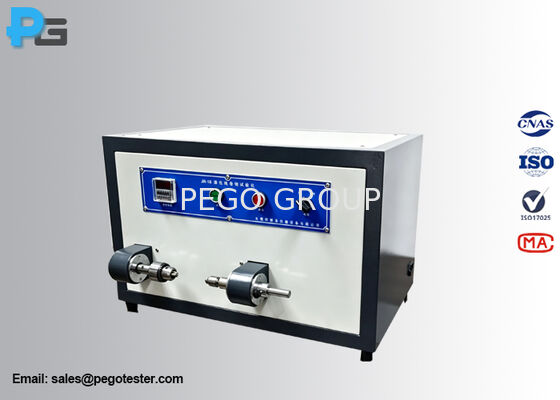

Large Image : IEC60851-3 Round Wire Mandrel Winding Test Apparatus

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-RMWT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden case
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Standard:

IEC60851-3

Wind Speed:

100±10r/min

Wind Turns:

0-999r Settable

Power Supply:

AC220V±10%, 50Hz

Highlight:

IEC60851-3 Round Wire Winding Apparatus

Mandrel Winding Test Apparatus

Round Wire Winding Apparatus

IEC60851-3 Round Wire Mandrel Winding Test Apparatus

1. Introduction

The round wire mandrel winding test apparatus is designed according to IEC60851-3 clause 6.2.1 and GB/T4074.3 clause 6.2.1. It’s used to evaluate the flexibility, heat shock resistance, thermal bonding strength, resistance to water-containing transformer oil, weight loss, and other properties of enameled round wires with a nominal conductor diameter of 1.60mm or less.

A straight piece of wire shall be wound for 10 continuous and adjacent turns around a polished mandrel of the diameter given in the relevant standard. The mandrel shall be rotated with a rate of 1r/s to 3r/s with a tension applied to the wire that is just sufficient to keep it in contact with the mandrel. Elongating or twisting the wire shall be avoided.

2. Specification

Wind speed	100±10r/min
Wind turns	0-999r settable
Mandrel diameter	1lot, 22pcs 0.15mm1, 0.25mm1, 0.28mm1, 0.32mm1, 0.35mm1, 0.4mm1, 0.65mm1, 0.7mm1, 0.8mm1, 0.9mm1, 1.0mm1, 1.1mm1, 1.25mm1, 1.4mm1, 1.6mm1, 1.8mm1, 2.0mm1, 2.2mm1, 3.55mm1, 4.0mm1, 4.5mm1, 5.0mm1
Weight	Small weight hook 0.1N1, Small weight: 0.1N2, 0.2N1, 0.5N1, Large weight hook: 1N1 Large weight: 1N 2, 2N1, 5N3,
Power Supply	AC220V±10%, 50Hz
Power consumption	≤100W
Operating environment	Temperature: 0-40℃, relative humidity: ≤85%
Dimension and weight	L600W350375mm/35KG
