IEC60851-3 Winding Wires Elongation Test Apparatus For Accurate Measurement

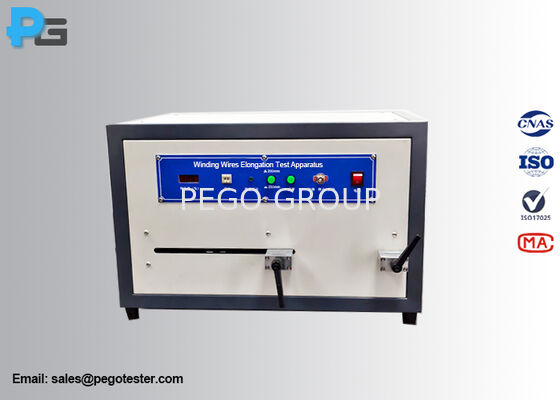

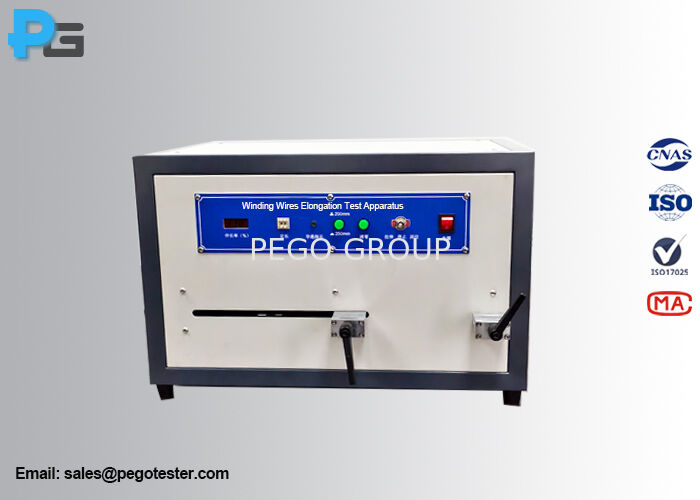

Large Image : IEC60851-3 Winding Wires Elongation Test Apparatus For Accurate Measurement

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-ETA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden case
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Standard:	IEC60851-3	Initial Distance Between Clamps:	200±1mm And 250±1mm, Adjustable
Movable Clamp Travel Distance:	≥82% (164mm)	Sample Elongate Rate:	5±1mm/s
Max. Elongation Test Range:	80% (IEC)	Power Supply:	AC220V±10%, 50Hz
Highlight:	Winding Wires Elongation Test Apparatus , IEC60851-3 Elongation Test Apparatus

IEC60851-3 Winding Wires Elongation Test Apparatus

1. Introduction

The wire elongation test apparatus is designed according to the IEC60851-3 clause 4.1 and GB/T4074.3 clause 4.1. It’s used for measuring the elongation (extension) rate of enameled wires, silk-wrapped or other insulation-coated round copper wires ranging from φ0.018 mm to φ3.000 mm, as well as other metal wires with a breaking force of ≤5000 N.

Principle:

A straight piece of wire shall be elongated to the point of fracture of the conductor at a rate of (5±1)mm/s with an elongation tester or with tensile testing equipment with a free measuring length of between 200mm and 250mm.

2. Specification

Control method	Microcontroller
Initial distance between clamps	200±1mm and 250±1mm, adjustable
Movable clamp travel distance	≥82% (164mm)
Sample elongate rate	5±1mm/s
Max. Elongation test range	80% (IEC)
Elongation display	Three-digit LED display automatically shows the test results, accuracy: 0.1%
Power Supply	AC220V±10%, 50Hz
Power consumption	≤200W or ≤350W
Operating environment	Temperature: 0-40℃, relative humidity: ≤85%
Dimension and weight	L640W400420mm/45KG
Function	When the specimen fractures, the movable clamp automatically stops moving.
