IEC60851-3 Enamelled Round Wire Peer Test Apparatus Input power AC 220V±10% 50Hz

Large Image : IEC60851-3 Enamelled Round Wire Peer Test Apparatus Input power AC 220V±10% 50Hz

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-WPTA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden case
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Standard:

IEC60851-3

Rotating Speed:

80±5r/min

Test Length:

500mm

Input Power:

AC 220V±10% 50Hz

Highlight:

Round Wire Peer Test Apparatus

Enamelled Wire Peer Test Apparatus

IEC60851-3 Peer Test Apparatus

Enamelled Round Wire Peer Test Apparatus

1. Introduction

The enamelled round wire peer test apparatus is designed according to the IEC60851-3 clause 6.5 figure 6 and GB/T4074.3 clause 6.5 figure 6. It’s used to test the film adhesion properties of enameled round wires with a nominal conductor diameter over 1.000 mm.

A straight piece of wire shall be placed in the test equipment consisting of two fixing devices 500mm apart on the same axis. One of these is free to rotate. The other is not but can be displaced axially and is loaded to apply a tension to the rotating wire. The pressure om the scraper shall be sufficient to remove the coating and leave a clean smooth surface at the coating/conductor interface without scraping off a significant quantity of conductor material.The removal of the coating shall commence about 10mm from the flexing devices. The coating device shall be driven at a speed of between 60r/min and 100r/min until the number of revolutions R as specified in the relevant standard has been reached.

2. Specification

Rotating speed	80±5r/min
Test length	500mm
Rotate times	1-999r settable
Scraper	Designed according to IEC60851-3 figure 7
Weight	Includes hook 5N1, 15N1, 20N1, 25N1, 30N*1
Input power	AC 220V±10% 50Hz
Power consumption	<150W
Dimension and weight	L1200W2200H3500mm/35KG

3. Load for peel test

Nominal conductor diameter mm		Load N
Over	Up to and including	Load N
1.000	1.400	25
1.400	1.800	40
1.800	2.240	60
2.240	2.800	100
2.800	3.550	160
3.550	4.500	250
4.500	5.000	400

4. Picture

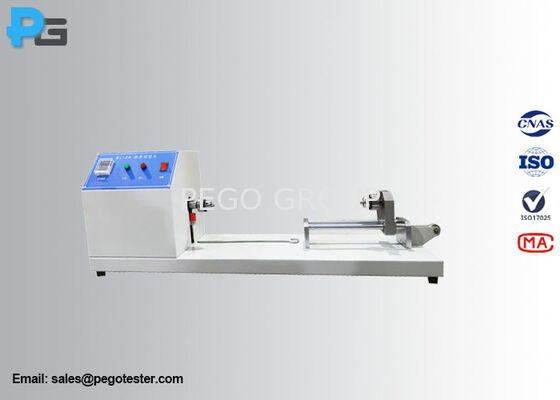

IEC60851-3 Enamelled Round Wire Peer Test Apparatus Input power AC 220V±10% 50Hz 0
