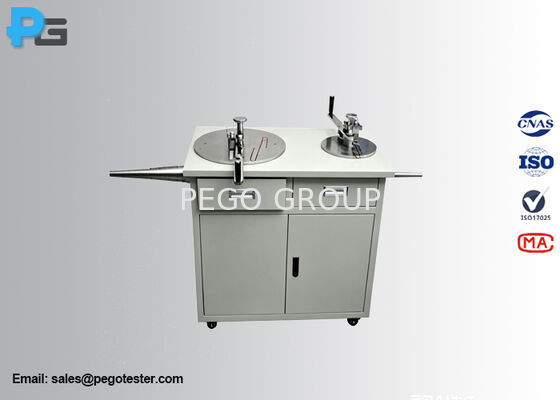

Rectangular Wire Mandrel Winding Test Apparatus

1. Introduction

The rectangular wire mandrel winding test apparatus is designed according to IEC60851-3 clause 6.2.2 figure 4 and GB/T4074.3 clause 6.2.2 figure 4. It’s suitable for winding testing of various rectangular wires with a nominal conductor diameter of 1.60mm or less—including enameled rectangular wire, paper-insulated rectangular wire, glass-fiber-insulated rectangular wire, and film-wrapped wire—as well as corresponding copper and aluminum rectangular wires.

A straight piece of wire approximately 400mm in length shall be bent through 180° round a polished mandrel of the diameter given in the relevant standard in two directions to form an elongated S-shape. The straight part between the U-shape bends shall be at least 150mm. Care should be taken to ensure that the specimen does not buckle or depart from a uniform bend.

2. Specification

Winding Host	1^st host for flatwise winding (on the thickness)	2^nd host for edgewise winding (on the width)
Flange diameter	Ø180mm	Ø260mm
Bending arm length	300mm	400mm
Bending arm rotation angle	>180°
Test rod	Stepped rods: 3pcs (comprising 36 distinct circular diameters ringing from Ø4-Ø60mm, Mandrel (standard diameters): 62pcs, Ø4-Ø80mm
