IEC60851-3 Enamelled Round Wire Jerk Test Apparatus Max Operating Pressure 0.8Mpa

Large Image : IEC60851-3 Enamelled Round Wire Jerk Test Apparatus Max Operating Pressure 0.8Mpa

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-JTA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden case
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Standard:	IEC60851-3	Jerk Speed:	≥3m/s
Initial Distance Between Two Clamps:	(250±1)mm	Max. Operating Pressure:	0.8Mpa
Max. Travel Of Movable Fixture:	125mm	Power Supply:	220V/50Hz
Highlight:	IEC60851-3 Jerk Test Apparatus , Enamelled Jerk Test Apparatus

IEC60851-3 Enamelled Round Wire Jerk Test Apparatus

1. Introduction

The enamelled round wire jerk test apparatus is designed according to IEC60851-3 clause 6.4 figure 5 and GB/T4074.3 clause 6.4 figure 5. It’s used to test the film adhesion properties of enameled round wires with a nominal conductor diameter up to and including 1.000 mm.

A straight piece of wire shall be rapidly stretched to the breaking point with test equipment as shown in figure 5. A free measuring length of between 200mm and 250mm shall be provided. After stretching, the specimen shall be examined for cracks or loss of adhesion under a magnification as given in Table 2. A distance of 2mm from the broken ends shall be disregarded.

2. Specification

Jerk speed	≥3m/s
Initial distance between two clamps	(250±1)mm
Max. Operating pressure	0.8Mpa
Max. Travel of movable fixture	125mm
Power consumption	<150W
Operating environment	Temperature: 0-40℃, relative humidity: ≤85%
Dimension and weight	L660W360418mm/55KG
Configure	Equip with an external air compressor

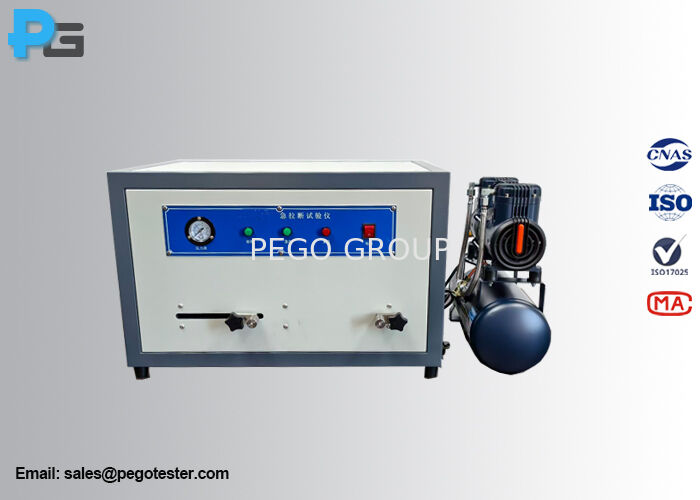

3. Picture

IEC60851-3 Enamelled Round Wire Jerk Test Apparatus Max Operating Pressure 0.8Mpa 0
