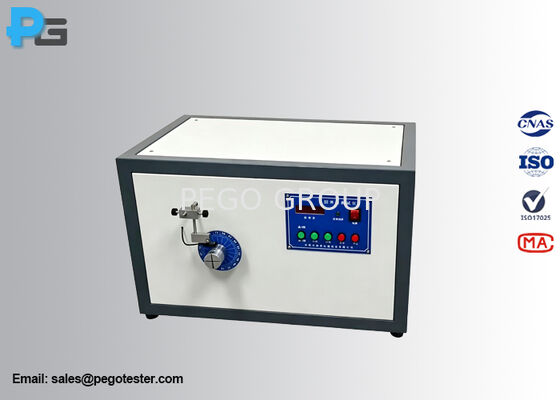

Springiness Speed 7r/min Winding Wires Springiness Test Apparatus Following IEC60851-3 Standard For Detailed Springiness Assessment Of Wire Samples Length 1m

Large Image : Springiness Speed 7r/min Winding Wires Springiness Test Apparatus Following IEC60851-3 Standard For Detailed Springiness Assessment Of Wire Samples Length 1m

Product Details:

Brand Name:	Pego
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-STA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden case
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Standard:	IEC60851-3	Length Of Sample:	1m
Springiness Speed:	7±0.5r/min	Number Of Turns:	5.5 (NEMA Standard: 3turns)
Power Supply:	AC220V±10%, 50Hz
Highlight:	7r/min Winding Wires Springiness Test Apparatus , 1m Winding Wires Springiness Test Apparatus , IEC60851-3 Springiness Test Apparatus

IEC60851-3 Winding Wires Springiness Test Apparatus

1. Introduction

The winding wires springiness test apparatus is designed according to IEC60851-3 clause 5.2 figure 1 and figure 2 and GB/T4074.3 clause 5.2. It’s used to test the springiness of the round wire with a nominal conductor diameter from 0.080mm up to and including 1.600mm.

Principle:

A straight piece of wire is wound five times around a mandrel with a diameter and under a tension applied to the wire as specified in the relevant standard. The reading of the angle by which the end of the five turns recoils is the measure of springiness.

2. Specification

Length of sample	1m
Springiness speed	7±0.5r/min
Dial	72 equally spaced divisions, designed according to figure 1
Weight	See table 2
Mandrel	See table 1
Deviation between the LED display value and the value on the dial	≤1°
Number of turns	5.5 (NEMA standard: 3turns)
Power Supply	AC220V±10%, 50Hz
Power consumption	<80W
Operating environment	Temperature: 0-40℃, relative humidity: ≤85%
Dimension and weight	L500W335300mm/25KG

3. Table 1 Mandrels for springiness

Mandrel diameter^amm	Dimension^b mm
Mandrel diameter^amm	a	b	c	d	e	f
5	6.0	7.5	32	0.30	0.05	0.13
7	6.0	9.0	34	0.40	0.07	0.18
10	6.0	9.0	34	0.60	0.10	0.25
12.5	6.0	9.0	40	0.80	0.14	0.35
19	10.0	11.0	45	1.20	0.20	0.50
25	12.5	12.5	45	2.00	0.28	0.70
37.5	12.5	14.5	47	2.40	0.40	1.00
50	12.5	17.5	50	3.00	0.80	2.00
a:At the botton of the groove, if provided b: See figure 2

4. Table 2 Weight

Weight (N)	0.25	0.50	1.0	2.0	4.0	8.0	12.0	15.0
Accuracy±	0.02	0.05	0.1	0.2	0.4	0.8	1.0	1.0
